These are an economical way to get the length that you need if you only occasionally handle loads that require a long fork. Fork pockets allow forklift tines to enter under the container allowing a standard forklift to lift a container as long as the forklift is rated to lift the payload.
Equipment Telematics Forklift Fork Dimensions
Tilt of upright fork carriage back forward a b Height upright lowered Freelift Lift height Height upright extended Height overhead guard Seat height Coupling height Overall length Length to face of forks Width Fork dimensions Fork carriage Fork carriage width Ground clearance minimum loaded Ground clearance center of wheelbase.
Standard forklift fork width. The forklift was developed in the early 20th century by various companies including Clark which made transmissions and Yale Towne Manufacturing which made hoists. Our fork arm flats and forklift masts. Most common would be 4000 lb capacity forklift which typically come with class 2 carriages and 15 x 4 x 42 long forks.
Scaled 2D drawings and 3D models available for download. Fork Extensions One other consideration is to use FORK EXTENSIONS. If pedestrians must also use these aisles a minimum width of 33 ft must be retained and reserved for pedestrians only.
Even though the size of your forklift can vary the dimensions for most four-wheel IC and Cushion forklifts range from a width of three feet for the smaller models and up to eight feet for larger forklifts. Fork correct dimensioning and conditions are essential for safe cost-effective and damage-free pallet handling operations. Other steel specifications may be available on request.
Therefore a regular fork inspection system should be put in place to ensure perfect operating conditions. Measurements are taken on either side of the machines body from a variety of positions including the axles fender fork carriage and tyres so be sure to specify with whoever you are dealing with which point your forklift is being measured from. Standard forklifts generally measure between 4 to 7 ft wide and 8 to 10 ft long.
A forklift also called lift truck jitney fork truck fork hoist and forklift truck is a powered industrial truck used to lift and move materials over short distances. Outdoor or rough terrain forklifts can be greater than 10 ft in length. One Pair of Standard Forklift Forks Standard Taper Sold Complete With Fork Pin Kit Fits 16 Class 2 Carriage Only 48 Length 4 Width 150 Thickness 5200 lbs Capacity Free Shipping to Business Addresses in Lower 48 States Call 888-624-1101 With Any Questions.
For example 120 x 50 x 2400 3B. All Hyster forklifts from 8 32 tonne capacity are suitable for ISO fork pockets size 115 355mm. The width of a forklift can vary depending on where the measurements are taken from.
Although they are versatile machines youll need the right size for the job. Browse our selection of standard forklift forks. Item Fork Blade Thickness in Fork Blade Width in Fork Blade Length in Blade Taper Style Request Quote.

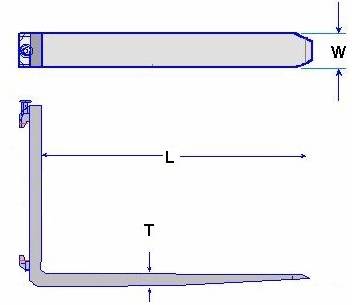

The class is a combination of the class of the truck and the fork drop see below for full description. For forks the same width increasing the thickness from 1-12 to 2 doubles the fork capacity making them more versatile Having forks the same length as your load is also a misconception. Dimensions of forklift forks are normally given as width W x thickness T x Length L in combination with the class.
The dimensions such as the overall height max fork height collapsed height overall length fork length should also be taken into consideration. Must Know Forklift Sizes. A comprehensive reference database of dimensioned drawings documenting the standard measurements and sizes of the everyday objects and spaces that make up our world.
If you have a racking system and loads are consistently being raised and lowered then height is a major factor. We have the largest in-stock forklift fork selection in North America offer FREE nationwide delivery lower 48 states 5 year full replacement warranty and a price match guarantee. Offset These forks are primarily used to allow the forks to reach beyond the standard width of the forklifts current carriage.
For stability the forks must reach under only 75 of the load. We sell Class II Class III and Class IV Standard Forklift Forks. Inspections repairs or replacements shall be carried out as a pair.
Since World War II the use and development of the. The width of one-way aisles must be no less than either the forklifts or vehicles moving in them or the largest-sized loads plus at least 600 mm except when using turret type trucks. Fork arm flats Thickness mm Width 100 120 122 123 150 180 200 230 250 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 Fork arm flats dimensional capability.
Click to learn more. Forklifts range in size depending on their function. Lets say for example a standard forklift you may have in your workplace typically its width measures between 4 to 7 feet while its length is 8 to 10 feet.
